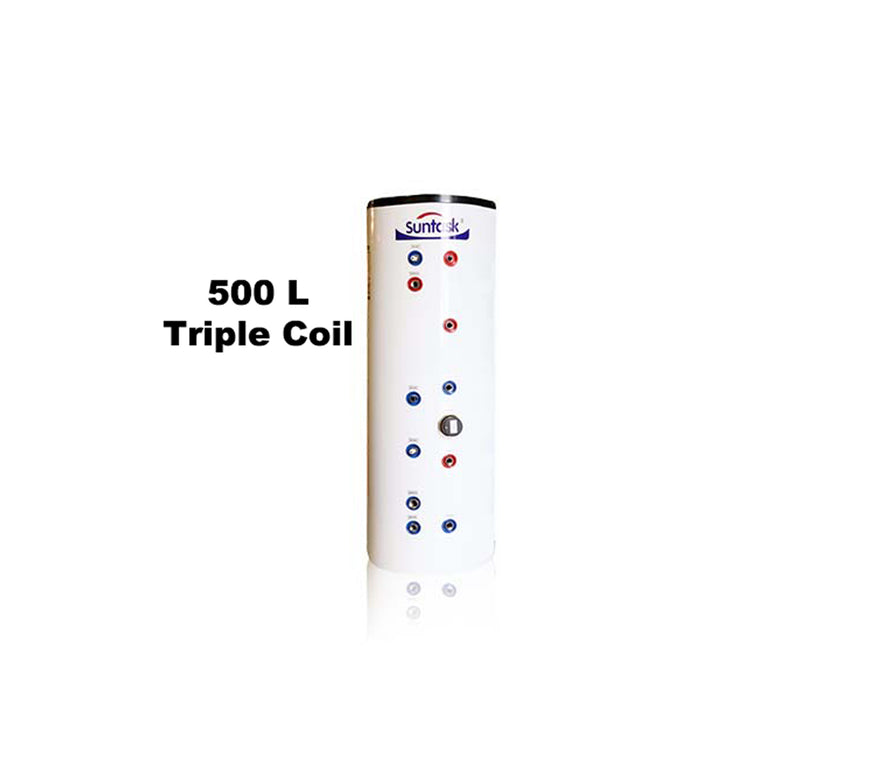

Suntask Duplex Stainless Steel Cylinder 500 L Triple Coil
- Regular price
- €1.226,53
- Regular price
-
- Sale price
- €1.226,53
- Unit price
- per
SKU : Cyl-SS500-3
Couldn't load pickup availability
Share
| Height | 1840 | Internal Diameter | 600 |
| External Diameter | 700 | Insulation | 50 |
| Drain 3/4″ female | 250 | Cold Feed 1″ female | 545 |
| Solar Coil Outlet 3/4″female | 350 | Solar Coil Feed 3/4″female | 650 |
| Solar Coil: Stainless Steel (diameter) | 22 | Boiler Coil Outlet 3/4″female | 1239 |
| Boiler Coil Feed 3/4″female | 1485 | Boiler Coil: Stainless Steel (diameter) | 22 |
| 1″Gravity Coil Outlet | 770 | 1″Gravity Coil Feed | 1008 |
| Gravity Coil: Stainless Steel (diameter) | 28 | 3Kw Immersion 1 | 770 |
| 3Kw Immersion 2 | 1108 | Temp Sensor Pocket 1 1/2″ female | 650 |
| Temp Sensor Pocket 2 1/2″ female | 1485 | Double Stat Temp Sen. Pocket | 770 |
| Secondary Return 3/4″female | 1385 | T & P Valve 1/2″ female | 1485 |
| Hot Draw Off 1″ female | 1840 | Standard Heat Loss per 24 Hours (kWhr) | 3.49 |
| Dedicated Solar Volume (ℓ) | 260 | Dedicated Solar Volume (%) | 52 |
| EN12897 Solar Heat Exchanger (kW) | 41.3 | Solar Coil (m²) | 1.5 |
| EN12897 Boiler Coil Exchanger (kW) | 33.1 | Boiler Coil Surface Area (m²) | 1.2 |
| EN12897 1″ Gravity Coil Exchanger (kW) | 35.8 | 1″ Gravity Coil (m²) | 1.3 |
| EN12977 ERP Storage Energy Efficiency Class | A |
