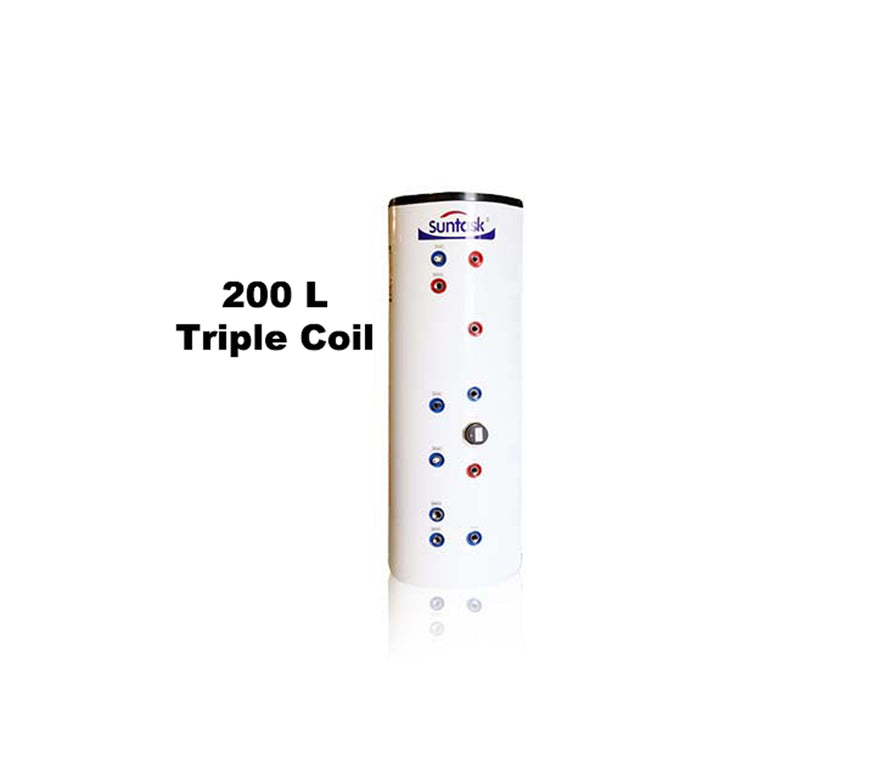

Suntask Duplex Stainless Steel Cylinder 200 L Triple Coil
- Regular price
- €743,90
- Regular price
-
- Sale price
- €743,90
- Unit price
- per
SKU : Cyl-SS200-2
Couldn't load pickup availability
Share
| Height | 1530 | Internal Diameter | 420 |
| External Diameter | 520 | Insulation | 50 |
| Drain 3/4″ female | 200 | Cold Feed 1″ female | 300 |
| Solar Coil Outlet 3/4″female | 370 | Solar Coil Feed 3/4″female | 370 |
| Solar Coil: Stainless Steel (diameter) | 22 | Boiler Coil Outlet 3/4″female | 1195 |
| Boiler Coil Feed 3/4″female | 1195 | Boiler Coil: Stainless Steel (diameter) | 22 |
| 1″Gravity Coil Outlet | 700 | 1″Gravity Coil Feed | 938 |
| Gravity Coil: Stainless Steel (diameter) | 28 | 3Kw Immersion 1 | 500 |
| 3Kw Immersion 2 | none | Temp Sensor Pocket 1 1/2″ female | 500 |
| Temp Sensor Pocket 2 1/2″ female | 1295 | Double Stat Temp Sen. Pocket | 625 |
| Secondary Return 3/4″female | 1295 | T & P Valve 1/2″ female | 1295 |
| Hot Draw Off 1″ female | 1530 | Standard Heat Loss per 24 Hours (kWhr) | 1.4 |
| Dedicated Solar Volume (ℓ) | 110 | Dedicated Solar Volume (%) | 55 |
| EN12897 Solar Heat Exchanger (kW) | 35.86 | Solar Coil (m²) | 1.3 |
| EN12897 Boiler Coil Exchanger (kW) | 27.58 | Boiler Coil Surface Area (m²) | 1 |
| EN12897 1″ Gravity Coil Exchanger (kW) | 30.34 | 1″ Gravity Coil (m²) | 1.1 |
| EN12977 ERP Storage Energy Efficiency Class | A |
