SMALLER, FASTER, LIGHTER
COMPACT MEASURES HUGE POWER
THE RIGHT TOOL FOR YOUR NEEDS

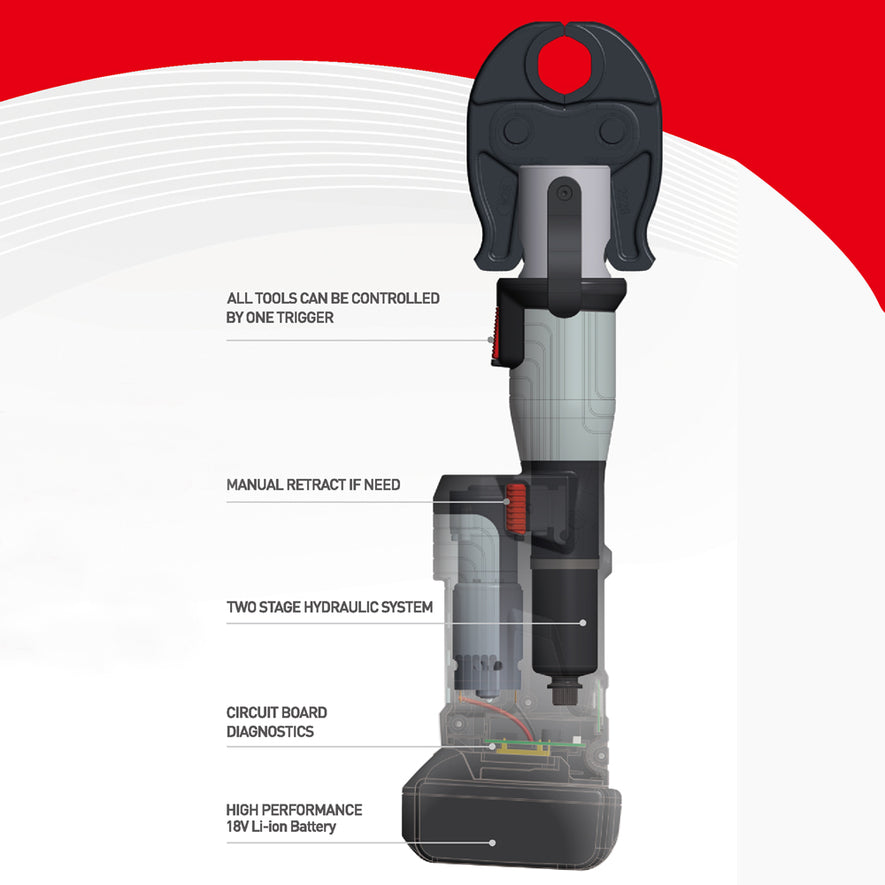

■ CIRCUIT BOARD DIAGNOSTICS
ALart you when the battery is low or the tool is too hot or cold
■ OLED DISPLAY
•Easy reading on
•Battery Percentage
•Pressing Times
•Fault Code
•Maintenance Note

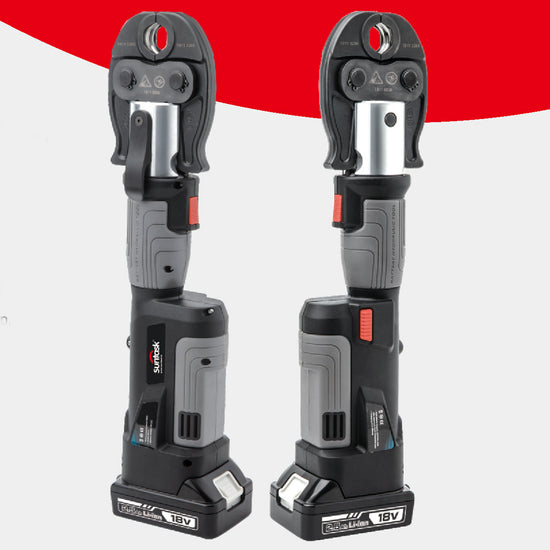

BATTERY POWERED PRESS TOOL
PRECISE PRESSING WITH LIGHTER BODY
• 16-32mm PEX & Multi-layer Pipe
This is the newest addition to the mini press tool with in-line grip, it is efficient and reliable way to join Multi-layer Pipe.
Capacity: 12-32mm PEX&Multi-layer pipe
Output:19KN
Stroke:30mm
Oil capacity: Approx. 60m
Crimping Cycle Time:2-4S
Crimping Cycles/charge: 180cycles
Battery:18V Li-ion 2.5Ah
Battery Charger: AC 100-240V
Charging Time: Approx. 50mins
Service Interval:Service Interval: 30000cycles
Weight:Approx.2.0kgs (tool with battery) Approx. 3.5kgs(tool with battery and jaw)
Tool Size:Tool Size: 363x120 x75mm
