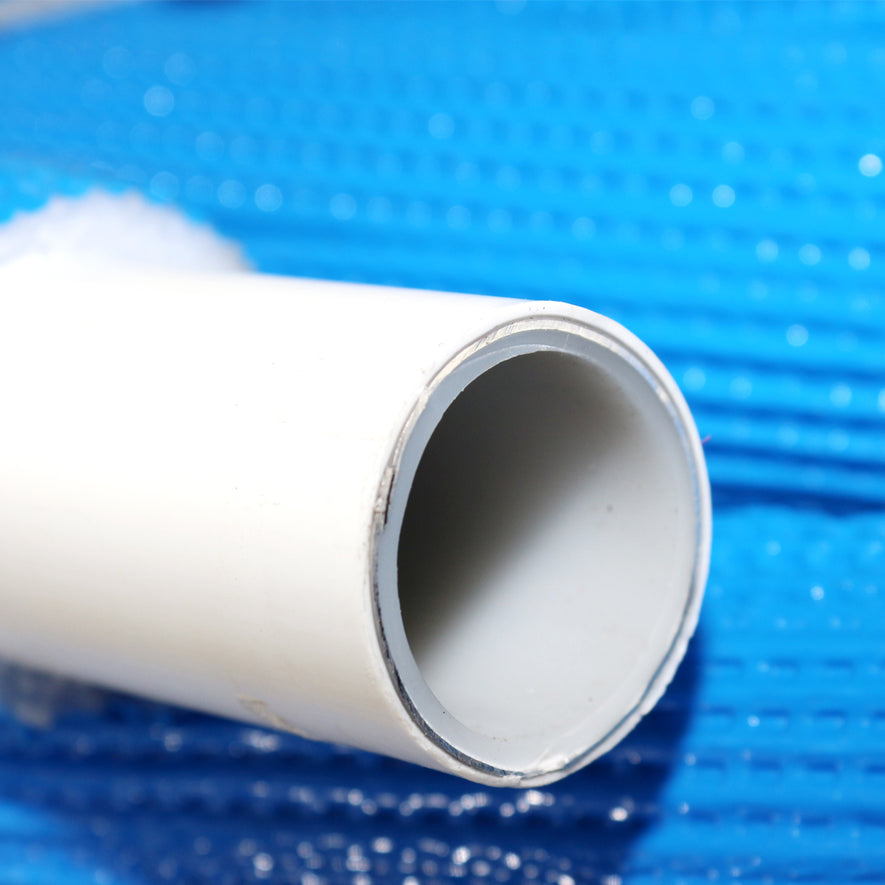

Pex-Al-Pex pipe is a coextruded multilayer pressure pipe constructed with crosslinked polyethylene with a welded aluminum tube coating between the internal and external layers. The internal and external crosslinked polyethylene layers are attached to the aluminum tube by a liquefied cement. The pipes consist of two layers of cross-linked PEX (polyethylene), two layers of adhesive and one intermediate layer of aluminium. They are considered an evolution of Pex pipes as they guarantee higher safety by its Pex-Al-Pex layers which improves creep resistance. In addition, Pex-Al-Pex pipes can bear the hardest working conditions as they are designed to bear up to 95ºC and 10 bars pressure.

Compared to other ultrasound overlapped multilayer pipes, Pex-Al-Pex is butt welded which fuses both ends of the aluminium sheet, which results in the highest possible resistance of the welding line to any other line of the aluminium layer. Whereas when the aluminium layer is welded by ultrasound the aluminium does not melt and it does not form a welding. In certain circumstances the aluminium sides may fall apart.

In our butt welded Pex-Al-Pex multilayer pipes the resistance of the welding line is surprisingly the firmest point of the aluminium layer, being superior to any other line of the aluminium layer. They provide high safety in the long-term and resistance to corrosion, deposits, and tuberculation, and are tough and durable to survive through installations. Aluminium layers can prevent oxygen from permeating into the pipe. Pex-Al-Pex pipes offer flexibility as well as stiffness to hold its shape. Being compact and lightweight, they are easy to transport. And they have less linear longitudinal thermal expansion and contraction than standard Pex. All the advantages make Pex-Al-Pex pipes your best option for the underfloor heating system.

Extensive testing for its durability and material performance has been carried out on Pex-Al-Pex pipes after which have been used widely in the European and North American markets. Pex-Al-Pex piping adapts to high temperature and is flexible. It is approved across all model plumbing and mechanical codes, and is commonly used for plumbing, underfloor heating, snow/ ice melting systems etc..

Summary of Pex-Al-Pex piping advantages:

-        Light, compact, easy for transportation

-        Many options for fitting & joining as no flame is used

-        High durability & firm to survive tough installations

-        Non-corrosive as the aluminum layer restricts oxygen from infiltrating into the pipe

-        Less thermal expansion & contraction compared to standard PEX

-        Flexible yet can hold its shape

-        Resistant to tuberculation & deposits

-        Safety of drinking water and reliability in long-term

Application of Pex-Al-Pex Piping:

-        Hot and cold water plumbing distribution

-        Chilled water piping

-        Underfloor heating systems

-        Radiant heating systems

-        Snow & ice melting

-        Turf conditioning & pitch heating

Technical Figures:

Diameter: 32 mm

Maximum operating temperature: 95°c

Maximum peak temperature: 110°c

Max pressure @ 95°c: 10 bar

Oxygen permeability: 0 mg/l

Thickness of the pipe insulating layers: 3 mm; compliant with d.p.r. No. 412 1993

Length: 25 m

Roughness: 7 μm

Sheath thermal conductivity at 40°c: 0.04 w/mk

Reaction to fire class 1-1

UNI EN ISO 21003 & DIN 4726 compliant

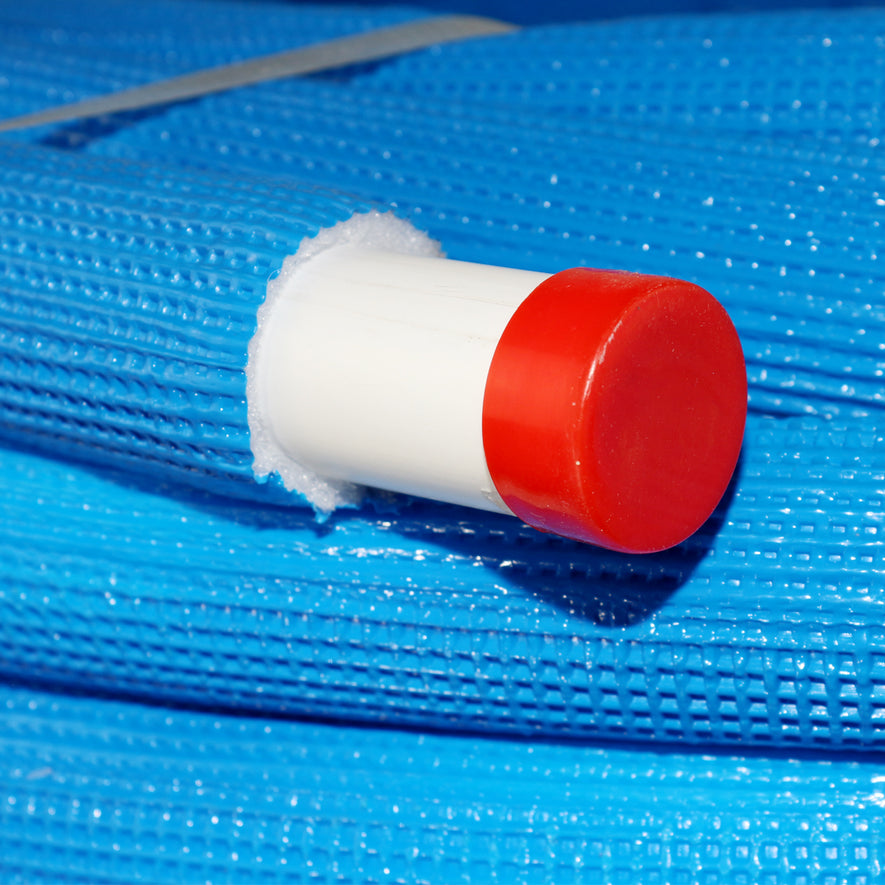

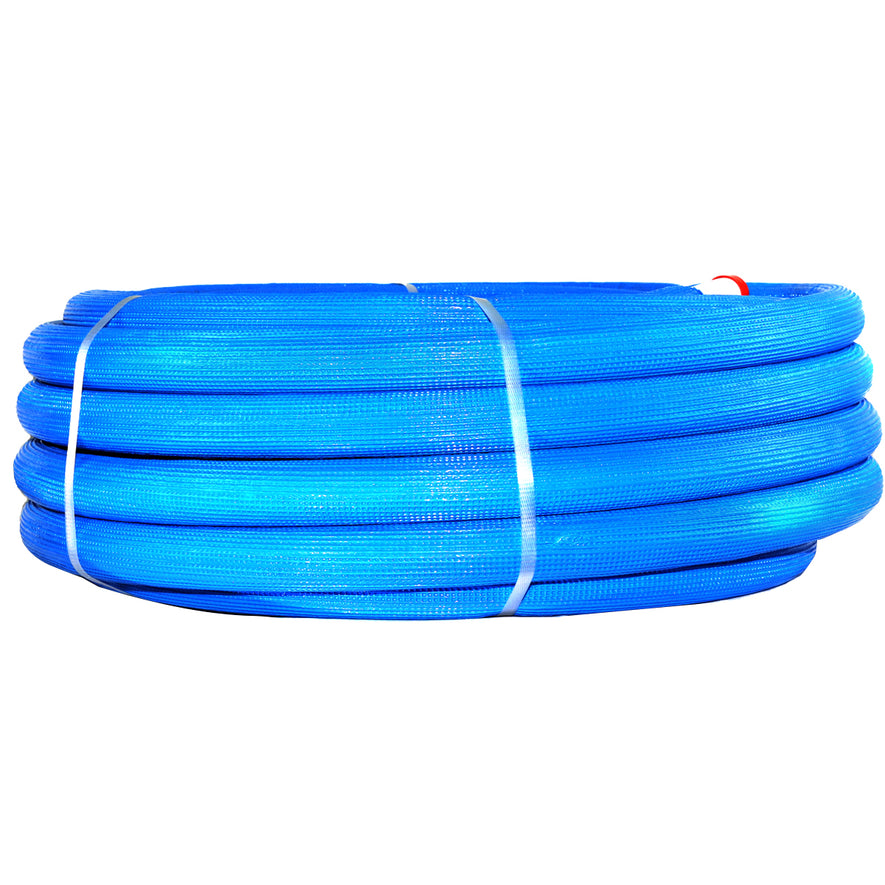

Insulation Pipe 32 x 3.0 x 25 m PEX-AL-PEX Blue: Superior Thermal Protection for Your PEX Systems

Enhance the efficiency of your PEX plumbing or heating systems with our Insulation Pipe 32 x 3.0 x 25 m PEX-AL-PEX Blue. Designed to provide exceptional thermal insulation and protection, this high-quality insulation pipe is ideal for both residential and commercial applications.

Key Features:

1. Premium PEX-AL-PEX Construction: The insulation pipe is made from advanced PEX-AL-PEX material, which combines the benefits of cross-linked polyethylene (PEX) and aluminum (AL). This construction offers superior thermal insulation and durability, ensuring your pipes maintain optimal temperature.

2. Generous 25-Meter Length: With a length of 25 meters, this insulation pipe provides ample coverage for a variety of applications. Whether you’re insulating new installations or retrofitting existing systems, the extended length offers flexibility and convenience.

3. Effective Thermal Insulation: The 32 mm diameter and 3.0 mm wall thickness provide excellent insulation, reducing heat loss and improving the efficiency of your heating or cooling systems. This insulation helps to maintain the desired temperature and lower energy costs.

4. Blue Color Coding: The distinctive blue color coding makes it easy to identify and differentiate from other piping materials. This feature simplifies installation and helps prevent confusion during system maintenance.

5. Durable and Long-Lasting: The PEX-AL-PEX insulation pipe is resistant to moisture, chemicals, and physical wear, ensuring long-term performance and reliability in a variety of environments.

Benefits:

• Improved Energy Efficiency: By minimizing heat loss and maintaining consistent temperatures, this insulation pipe helps to reduce energy consumption and lower utility bills, making it an environmentally friendly choice.

• Enhanced System Longevity: The superior insulation and durable construction protect your pipes from external elements, reducing the risk of damage and extending the lifespan of your PEX systems.

• Easy Installation: Designed for straightforward installation, this insulation pipe is compatible with a range of PEX piping systems. The flexibility and length make it easy to work with, saving you time and effort.

Applications:

The Insulation Pipe 32 x 3.0 x 25 m PEX-AL-PEX Blue is ideal for:

• Insulating PEX piping in heating and cooling systems
• Enhancing the efficiency of residential and commercial plumbing systems
• Protecting pipes from temperature fluctuations and external damage
• Reducing energy loss in hot and cold water systems

Why Choose Our Insulation Pipe 32 x 3.0 x 25 m PEX-AL-PEX Blue?

When it comes to insulating your PEX systems, the quality of the insulation pipe is crucial for performance and energy efficiency. Our Insulation Pipe 32 x 3.0 x 25 m PEX-AL-PEX Blue offers the perfect combination of durability, thermal protection, and ease of use. Ideal for both new installations and upgrades, this insulation pipe helps you maintain optimal system performance while saving on energy costs.

Order your Insulation Pipe 32 x 3.0 x 25 m PEX-AL-PEX Blue from Suntask.ie today and experience superior insulation and efficiency for your PEX systems!
