Pex-Al-Pex pipe is a coextruded multilayer pressure pipe constructed with crosslinked polyethylene with a welded aluminum tube coating between the internal and external layers. The internal and external crosslinked polyethylene layers are attached to the aluminum tube by a liquefied cement. The pipes consist of two layers of cross-linked PEX (polyethylene), two layers of adhesive and one intermediate layer of aluminium. They are considered an evolution of Pex pipes as they guarantee higher safety by its Pex-Al-Pex layers which improves creep resistance. In addition, Pex-Al-Pex pipes can bear the hardest working conditions as they are designed to bear up to 95ºC and 10 bars pressure.

Compared to other ultrasound overlapped multilayer pipes, Pex-Al-Pex is butt welded which fuses both ends of the aluminium sheet, which results in the highest possible resistance of the welding line to any other line of the aluminium layer. Whereas when the aluminium layer is welded by ultrasound the aluminium does not melt and it does not form a welding. In certain circumstances the aluminium sides may fall apart.

In our butt welded Pex-Al-Pex multilayer pipes the resistance of the welding line is surprisingly the firmest point of the aluminium layer, being superior to any other line of the aluminium layer. They provide high safety in the long-term and resistance to corrosion, deposits, and tuberculation, and are tough and durable to survive through installations. Aluminium layers can prevent oxygen from permeating into the pipe. Pex-Al-Pex pipes offer flexibility as well as stiffness to hold its shape. Being compact and lightweight, they are easy to transport. And they have less linear longitudinal thermal expansion and contraction than standard Pex. All the advantages make Pex-Al-Pex pipes your best option for the underfloor heating system.

Extensive testing for its durability and material performance has been carried out on Pex-Al-Pex pipes after which have been used widely in the European and North American markets. Pex-Al-Pex piping adapts to high temperature and is flexible. It is approved across all model plumbing and mechanical codes, and is commonly used for plumbing, underfloor heating, snow/ ice melting systems etc..

Summary of Pex-Al-Pex piping advantages:

-        Light, compact, easy for transportation

-        Many options for fitting & joining as no flame is used

-        High durability & firm to survive tough installations

-        Non-corrosive as the aluminum layer restricts oxygen from infiltrating into the pipe

-        Less thermal expansion & contraction compared to standard PEX

-        Flexible yet can hold its shape

-        Resistant to tuberculation & deposits

-        Safety of drinking water and reliability in long-term

Application of Pex-Al-Pex Piping:

-        Hot and cold water plumbing distribution

-        Chilled water piping

-        Underfloor heating systems

-        Radiant heating systems

-        Snow & ice melting

-        Turf conditioning & pitch heating

Technical Figures:

Diameter: 26 mm

Maximum operating temperature: 95°c

Maximum peak temperature: 110°c

Max pressure @ 95°c: 10 bar

Oxygen permeability: 0 mg/l

Thickness of the pipe insulating layers: 3 mm; compliant with d.p.r. No. 412 1993

Length: 25 m

Roughness: 7 μm

Sheath thermal conductivity at 40°c: 0.04 w/mk

Reaction to fire class 1-1

UNI EN ISO 21003 & DIN 4726 compliant

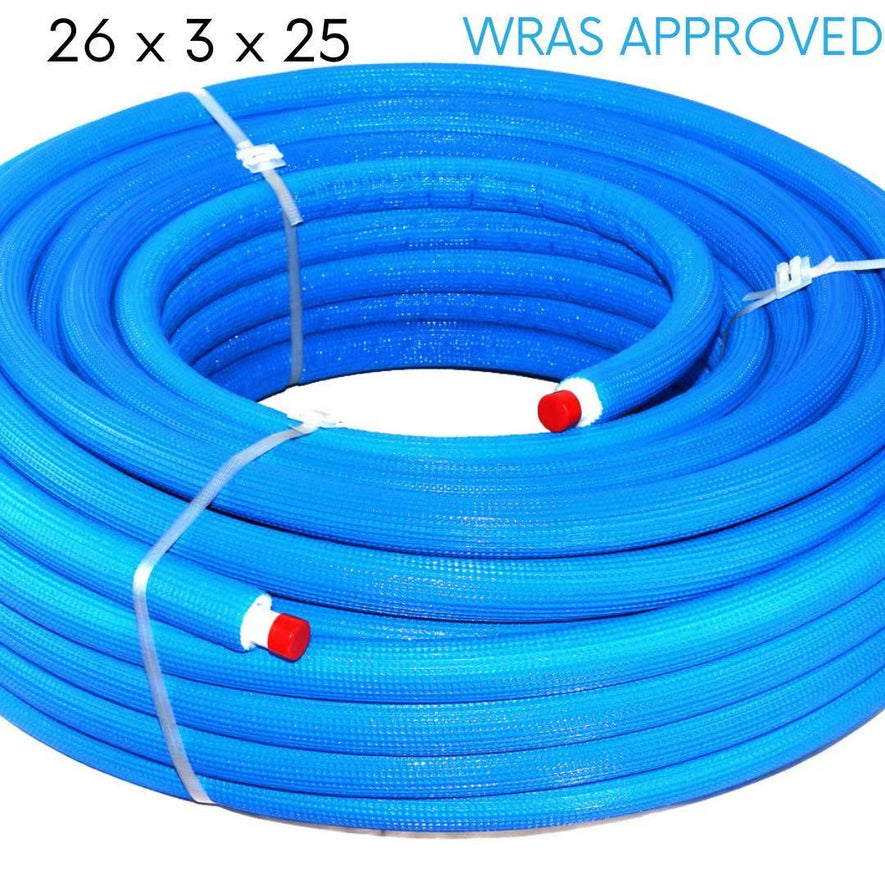

Insulated Pipe Blue 26 x 3.0 x 25m: High-Performance Pipe for Efficient Thermal Insulation

Ensure optimal thermal performance and energy efficiency with our Insulated Pipe Blue 26 x 3.0 x 25m. This premium-quality pipe is designed for use in heating and plumbing systems, offering excellent thermal insulation to minimize heat loss and maximize efficiency. Its durable construction and flexibility make it the perfect solution for both residential and commercial applications.

Key Features:

1. Superior Insulation: The Insulated Pipe Blue 26 x 3.0 provides effective thermal insulation, reducing heat loss and maintaining temperature consistency in your heating or cooling system. This ensures that your system operates efficiently, saving you energy and costs.

2. High-Quality Construction: Made from robust materials, this pipe is built to withstand extreme conditions. Its 26mm diameter and 3.0mm wall thickness offer strength, durability, and long-term reliability, ensuring it performs under pressure.

3. Flexible and Easy to Install: The pipe is designed for flexibility, making it easy to install in a variety of settings. Whether you're working on a new installation or upgrading an existing system, this 25-meter roll offers convenience and ease of handling.

4. UV and Weather-Resistant: The outer blue insulation layer is resistant to UV radiation and harsh weather conditions, making it suitable for both indoor and outdoor installations.

5. Cost-Effective Solution: With its excellent insulating properties, this pipe helps reduce energy loss, leading to lower energy bills. It's a cost-effective solution for anyone looking to improve the efficiency of their heating or cooling system.

Benefits:

• Energy Efficiency: By preventing heat loss, the Insulated Pipe Blue 26 x 3.0 keeps your heating system efficient, reducing the strain on your boiler and saving you money on energy bills.

• Easy Identification: The blue color coding allows for quick identification, particularly useful in systems where both hot and cold water lines are present.

• Durable and Long-Lasting: Engineered from high-quality materials, this insulated pipe is designed to last, offering long-term performance with minimal maintenance.

Applications:

The Insulated Pipe Blue 26 x 3.0 x 25m is ideal for:

• Underfloor heating systems
• Hot and cold water supply lines
• Solar thermal systems
• HVAC systems
• Industrial and residential plumbing

Why Choose Our Insulated Pipe Blue 26 x 3.0 x 25m?

At Suntask.ie, we pride ourselves on offering products that combine durability, efficiency, and ease of use. The Insulated Pipe Blue 26 x 3.0 is designed to help you optimize your heating or cooling system by reducing energy waste and providing long-lasting reliability. Perfect for a wide range of applications, this pipe ensures top-notch performance while keeping energy costs in check.

Order your Insulated Pipe Blue 26 x 3.0 x 25m from Suntask.ie today and enhance the efficiency of your plumbing or heating system!
