Description

Our universal range of eurocone pipe connectors are suitable for connecting both EVOH Pert and Pert Al Pert pipe to any 3/4″ manifold port.

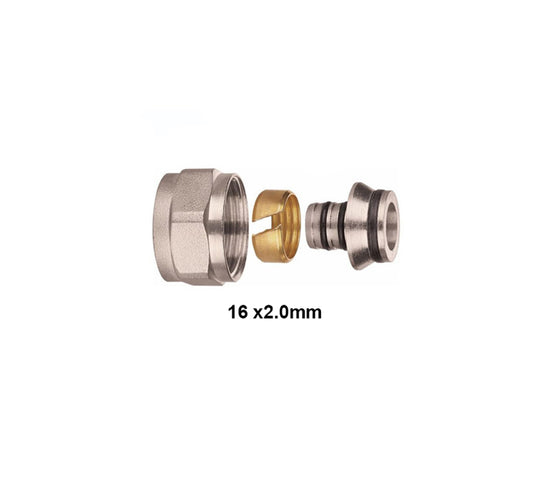

Each fitting includes an olive, insert and connection nut as shown in the picture.

Available for 12, 15, 16, 17, 18 & 20mm pipe

PLEASE NOTE:

• 16x2mm will fit our range of 16mm EVOH & PERT-AL-PERT pipe

• 12×1.6mm will fit our range of 12mm PERT-AL-PERT pipe

Installation

1. Slide the compression nut onto the pipe
2. slide the olive onto the pipe
3. Push the insert into the pipe ensuring it passes the rubber seal
4. Hold the pipe firmly against the manifold port and slide the compression nut onto the manifold thread
5. Tighten the compression nut to ensure a permanent and watertight seal

Specifications

• Join various sized PERT & AL-PERT pipe to 3/4″ manifold ports

• Compression fitting can be assembled with just a spanner

• Made from high grade nickel plated brass

• Olive and double O ring rubber seal for a safe & watertight finish
