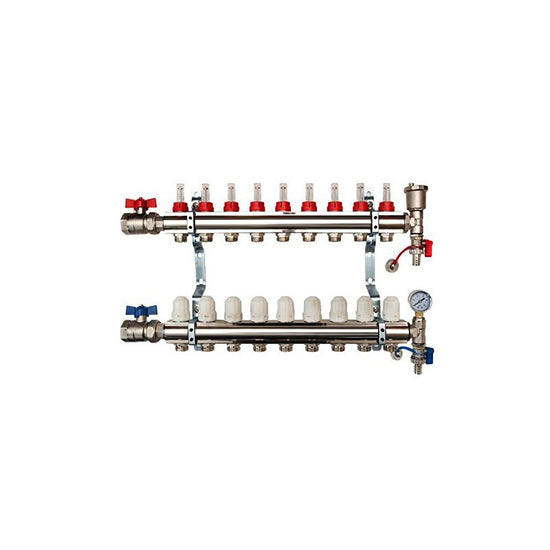

A light, durable, and fully furnished manifold centre for heating circuits that offers easy integration of heating flow and return to floor heating loops. Our premium range of brass underfloor heating manifolds are manufactured to international standard ISO9001, ISO14001, CE, TUV SUD, and WRAS to offer outstanding performance & reliability.
Our 9 port manifolds provide easy connection for 11 underfloor heating loops. The return manifold and flow manifold are connected to the mounting bracket that allows the underfloor heating flows to move onwards to the return manifold. The ball valves on the underfloor heating manifold connect the heat flow and return by the heat pump.
We provide free design of underfloor heating systems when you buy all parts from us. Give us a call 01-5394317.
Each premium manifold kit includes:
1x flow manifold
1x return manifold
Flow meter per port
Isolation valve per port
Isolation ball valves
Drain & fill point
Automatic air vents
Pre-fitted mounting bracket
Eurocone pipe connectors (16mm) -Not Included
|Material||Nickel plated brass|
|Usual working temperature||82°c|
|Maximum working pressure||10bar|
|Maximum working temperature||105°c|
|Maximum test pressure||10bar|
|Manufacturing Standards||ISO9001, ISO14001, CE, TUV SUD, WRAS|
