Overview

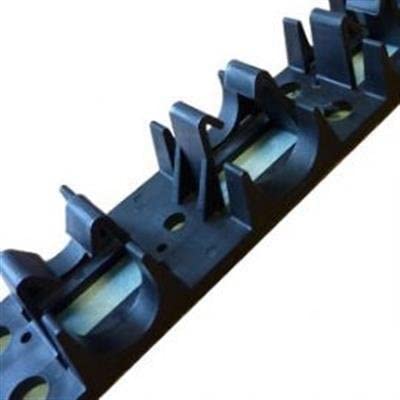

Suntask universal clip rail accommodates pipe diameters from 14mm to 22mm. The clip rail is used to hold underfloor heating pipes in place before applying screed.

Features

Locking grips on the Universal Clip Rail hold the pipework firmly in position prior to screeding.

Self-adhesive strip makes positioning the Universal Clip Rail onto the insulation a simple process, helping reduce installation times.

An accurate, productive alternative to positioning and fixing pipework with Tacker Clips.

Universal Clip Rails are robust and reliable and resistant to crushing and breaking.

Integral “snap-on” tabs at the ends of the rails ensure they can be securely joined together to any final length requirement.

Instructions

Put universal clip rails across the floor to construct a matrix for underfloor heating pipes. The self-adhesive backing will attach to the insulation. A 200m space between the universal clip rails must be left and they should be placed 50cm from the edges of the walls.

Specifications

Suntask Underfloor Heating universal clip rail is available in 14-22mm. The price is for 1m.

Material

The material used for Suntask universal clip rail is plastic, which means it’s very lightweight.
